SC 2 EasyFix (yellow) *EU : Part Number-1.512-050.0

Brand : Kaercher

by Ultimamac Services Pvt. Ltd.

Discontinued:

View Spares

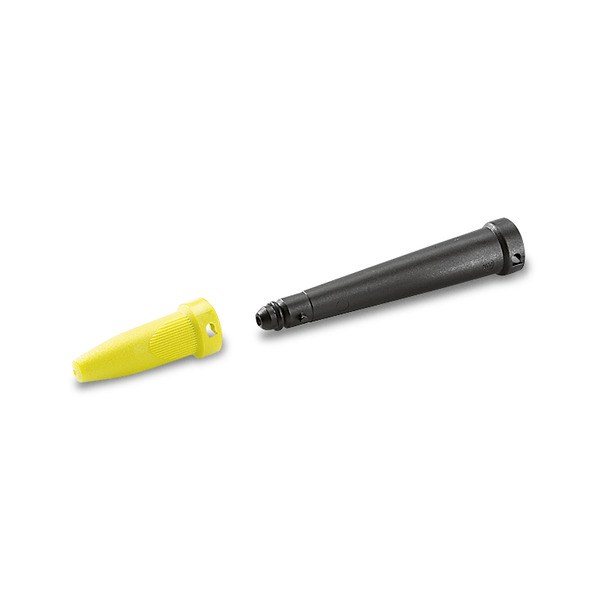

9504 Power nozzle set (2.863-263.0)

View Spares of - 9504 Power nozzle set (2.863-263.0)

Features

Test Certificate

Kills Up To 99.999% Of Coronavirus* And 99.99% Bac

Area Performance Per Tank Filling

Ca. 75 M²

Heating Output

1500 W

Max. Steam Pressure

Max. 3.2 Bar

Cable Length

4 M

Heat-Up Time

6.5 Min

Boiler/Tank Capacity

1 L

Supply Voltage

1 / 220 – 240 / 50 – 60 Ph / V / Hz

Weight Without Accessories

2.9 Kg

Dimensions (L X W X H)

380 X 254 X 260 Mm

9504 Power nozzle set (2.863-263.0)

Download

View Spares of - 9504 Power nozzle set (2.863-263.0)

Kaercher Steam Mops Model No : SC 2 EasyFix (yellow) *EU - Part Number- 1.512-050.0 Spares (43)

Page : 1 2 3

Spare Details	Drawing Title	Position No in Drawing	Price ( ₹ ) ( Including GST )	Options
Thermostat 143/260°C TR-TS Discomelt 2 Part No - 6.630-269.0 By - Ultimamac Services Pvt. Ltd.	35 Boiler complete replacement SC 1.020 (4.070-818.3)	1	589.00	Add Cart Wishlist
Combination TR-TS Discomelt 2 Part No - 6.630-649.0 By - Ultimamac Services Pvt. Ltd.	35 Boiler complete replacement SC 1.020 (4.070-818.3)	1	750.00	Add Cart Wishlist
O-Ring seal 7,65X 1,78 Part No - 6.362-186.0 By - Ultimamac Services Pvt. Ltd.	112 Point jet nozzle complete black (4.130-431.0)	2	106.00	Add Cart Wishlist
O-Ring seal 6,02X 2,62 Part No - 6.362-924.0 By - Ultimamac Services Pvt. Ltd.	9504 Power nozzle set (2.863-263.0)	2	106.00	Add Cart Wishlist
O-Ring seal 7,65X 1,78 Part No - 6.362-186.0 By - Ultimamac Services Pvt. Ltd.	9512 Point jet nozzle complete PA (4.130-021.0)	2	106.00	Add Cart Wishlist
Seal throttle 1800W Part No - 5.363-770.0 By - Ultimamac Services Pvt. Ltd.	9002 Elbow nipple set replacement (4.509-000.0)	2	119.00	Add Cart Wishlist
Snap-fit Part No - 5.037-220.0 By - Ultimamac Services Pvt. Ltd.	117 Extension pipe SG 0.5m (4.127-024.3)	3	237.00	Add Cart Wishlist
Rubber lip Part No - 5.512-125.0 By - Ultimamac Services Pvt. Ltd.	9502 Window nozzle special accessories (2.863-025.0)	3	243.00	Add Cart Wishlist
Screw M4x12 -St-R2R (In6Rd) Part No - 7.303-032.0 By - Ultimamac Services Pvt. Ltd.	9002 Elbow nipple set replacement (4.509-000.0)	3	56.00	Add Cart Wishlist
O-Ring seal 8,73x1,78 Part No - 6.362-922.0 By - Ultimamac Services Pvt. Ltd.	117 Extension pipe SG 0.5m (4.127-024.3)	4	102.00	Add Cart Wishlist
Screw M4x10 -St-P2R (In6Rd) Part No - 7.303-031.0 By - Ultimamac Services Pvt. Ltd.	35 Boiler complete replacement SC 1.020 (4.070-818.3)	4	119.00	Add Cart Wishlist
O-Ring seal EPDM 22x3 Part No - 6.363-468.0 By - Ultimamac Services Pvt. Ltd.	9500 Safety lock complete replacement (4.590-105.0)	6	106.00	Add Cart Wishlist
Tab double 2x 4,8x0,8 Part No - 6.651-026.0 By - Ultimamac Services Pvt. Ltd.	35 Boiler complete replacement SC 1.020 (4.070-818.3)	7	113.00	Add Cart Wishlist
M6 X 32 TORX DRIVE PAN HD SPECIAL POINT Part No - 6.303-324.0 By - Ultimamac Services Pvt. Ltd.	35 Boiler complete replacement SC 1.020 (4.070-818.3)	8	119.00	Add Cart Wishlist
Upper housing complete replacement SC 2 Part No - 4.512-083.0 By - Ultimamac Services Pvt. Ltd.	*SC 2 EasyFix (yellow)EU (1.512-050.0)**	30	4588.00	Add Cart Wishlist
Screw 5x20 -10.9-R2R (In6Rd) Part No - 7.303-108.0 By - Ultimamac Services Pvt. Ltd.	*SC 2 EasyFix (yellow)EU (1.512-050.0)**	31	87.00	Add Cart Wishlist
Housing bottom part Floortool r-r Part No - 5.512-022.0 By - Ultimamac Services Pvt. Ltd.	*SC 2 EasyFix (yellow)EU (1.512-050.0)**	32	1747.00	Add Cart Wishlist
Boiler complete replacement SC 1.020 Part No - 4.070-818.3 By - Ultimamac Services Pvt. Ltd.	*SC 2 EasyFix (yellow)EU (1.512-050.0)**	35	12069.00	Add Cart Wishlist
Bearing rubber bottom Part No - 6.512-001.0 By - Ultimamac Services Pvt. Ltd.	*SC 2 EasyFix (yellow)EU (1.512-050.0)**	36	117.00	Add Cart Wishlist
Bearing rubber above Part No - 6.512-002.0 By - Ultimamac Services Pvt. Ltd.	*SC 2 EasyFix (yellow)EU (1.512-050.0)**	37	117.00	Add Cart Wishlist

Image	Spare Details	Price (₹) (With GST)	Options
	Thermostat 143/260°C TR-TS Discomelt 2 6.630-269.0 35 Boiler complete replacement SC 1.020 (4.070-818.3) Position No : 1	589.00
	Combination TR-TS Discomelt 2 6.630-649.0 35 Boiler complete replacement SC 1.020 (4.070-818.3) Position No : 1	750.00
	O-Ring seal 7,65X 1,78 6.362-186.0 112 Point jet nozzle complete black (4.130-431.0) Position No : 2	106.00
	O-Ring seal 6,02X 2,62 6.362-924.0 9504 Power nozzle set (2.863-263.0) Position No : 2	106.00
	O-Ring seal 7,65X 1,78 6.362-186.0 9512 Point jet nozzle complete PA (4.130-021.0) Position No : 2	106.00
	Seal throttle 1800W 5.363-770.0 9002 Elbow nipple set replacement (4.509-000.0) Position No : 2	119.00
	Snap-fit 5.037-220.0 117 Extension pipe SG 0.5m (4.127-024.3) Position No : 3	237.00
	Rubber lip 5.512-125.0 9502 Window nozzle special accessories (2.863-025.0) Position No : 3	243.00
	Screw M4x12 -St-R2R (In6Rd) 7.303-032.0 9002 Elbow nipple set replacement (4.509-000.0) Position No : 3	56.00
	O-Ring seal 8,73x1,78 6.362-922.0 117 Extension pipe SG 0.5m (4.127-024.3) Position No : 4	102.00
	Screw M4x10 -St-P2R (In6Rd) 7.303-031.0 35 Boiler complete replacement SC 1.020 (4.070-818.3) Position No : 4	119.00
	O-Ring seal EPDM 22x3 6.363-468.0 9500 Safety lock complete replacement (4.590-105.0) Position No : 6	106.00
	Tab double 2x 4,8x0,8 6.651-026.0 35 Boiler complete replacement SC 1.020 (4.070-818.3) Position No : 7	113.00
	M6 X 32 TORX DRIVE PAN HD SPECIAL POINT 6.303-324.0 35 Boiler complete replacement SC 1.020 (4.070-818.3) Position No : 8	119.00
	Upper housing complete replacement SC 2 4.512-083.0 SC 2 EasyFix (yellow)*EU (1.512-050.0) Position No : 30	4588.00
	Screw 5x20 -10.9-R2R (In6Rd) 7.303-108.0 SC 2 EasyFix (yellow)*EU (1.512-050.0) Position No : 31	87.00
	Housing bottom part Floortool r-r 5.512-022.0 SC 2 EasyFix (yellow)*EU (1.512-050.0) Position No : 32	1747.00
	Boiler complete replacement SC 1.020 4.070-818.3 SC 2 EasyFix (yellow)*EU (1.512-050.0) Position No : 35	12069.00
	Bearing rubber bottom 6.512-001.0 SC 2 EasyFix (yellow)*EU (1.512-050.0) Position No : 36	117.00
	Bearing rubber above 6.512-002.0 SC 2 EasyFix (yellow)*EU (1.512-050.0) Position No : 37	117.00

Page : 1 2 3
